UL1691 Single Shielded Wire 單芯隔離線

■ 說明：
●導體使用單條或絞線，裸軟銅或鍍錫軟銅線
●實心，發泡或耐燃PE絕緣
●裸軟銅或鍍錫軟銅線纏繞隔離
●PVC被覆
●額定溫度：80℃； 額定電壓：30volts
●可通過UL VW-1SC 垂直耐燃測試
●參考標準：UL 758，UL 1581

■ 應用：
●用于視聽設備內部配線

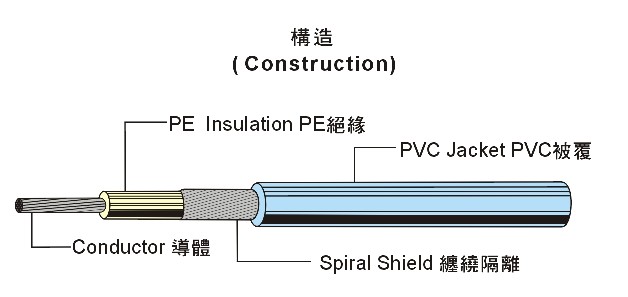

UL 1691 Single Shielded Wire 單芯隔離線構造圖


■ PRODUCT DESCRIPTION:
●Tinned or bare,stranded or solid copper conductor.
●Solid,formed or FR-PE insulation.
●Tinned or bare copper wire spiral shield.
●PVC jacket.
●Rated temperature：80℃.Rated voltage：30 volts.
●Passes UL VW-1 SC vertical flame test.
●Reference standard：UL subject 758, UL 1581.

■ APPLICATIONS:
●Internal wiring in audio and video equipment.
