UL2547 Multi-Core Shielded Wire 多芯隔離線

■說明：
●導體使用絞線，30 - 16AWG裸軟銅或鍍錫軟銅線
●半硬PVC絕緣，芯線類似UL 1061
●2芯或3芯
●裸軟銅或錫軟銅線纏繞隔離
●PVC被覆
●額定溫度：80℃； 額定電壓：無規定
●可通過UL VW-1SC 垂直耐燃測試
●參考標準：UL 758，UL 1581

■應用：
●用于錄音，錄音工作室，音響系統，電子電路

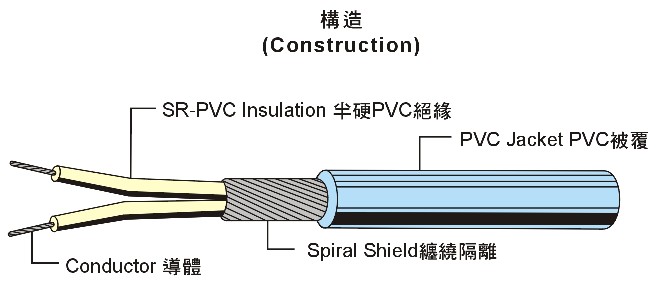

■PRODUCT DESCRIPTION：
●Tinned or bare,stranded or solid copper conductor,30-16AWG .
●Color-coded PVC insulation similar to UL 1061.
●Two or three cores.
●Tinned or bare copper wire spiral shield.
●PVC jacket.
●Rated temperature：80℃.Rated voltage not specified.
●Passes UL VW - 1SC vertical flame test.
●Reference standard：UL subject 758，UL 1581.

■APPLICATIONS
●For use in recording studios,sound systems and electronic circuits.
