UL2960 Low Voltage Computer Cable 電腦線

■ 說明：

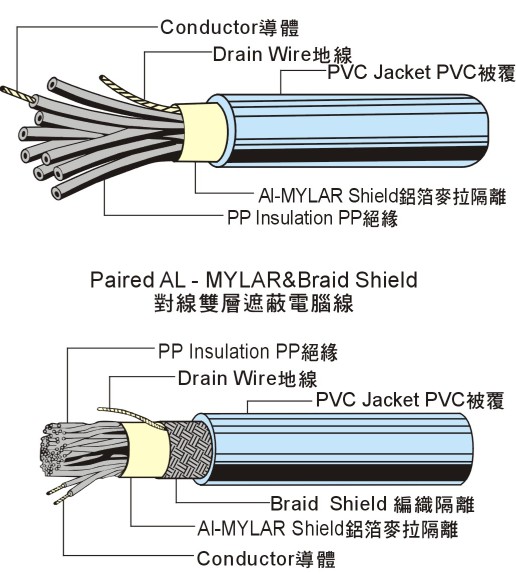

● 導體使用裸軟銅或鍍錫軟銅絞線
●PP絕緣
●芯線集合后鋁箔麥拉帶隔離
●裸軟銅或鍍錫軟銅線地線
●地線置于鋁箔麥拉帶與編織層之間(或鋁箔麥拉帶與芯線之間)
●裸軟銅或鍍錫軟銅線編織隔離，至少85%的覆蓋率(或沒有編織隔離)
●PVC被覆，多芯電腦線與資料傳輸電纜
●額定溫度：80；額定電壓：30volts
●通過UL VW-1 垂直耐燃測試
●參考標準：UL 58；UL1581

■ 應用：
●符合國際電工標準規范EIA RS-232及
  規定使用之電腦線。


■ PRODUCT DESCRIPTION：
● Tinned or bare stranded copper conductor.
● Color-coded polypropylene(PP) insulation.
● Cores cabled under aluminum mylar shield.
● Tinned or bare copper drain wire.
● Drain wire laid between aluminum mylar and braid
   (or laid between aluminum mylar and core grous).
● Tinned or bare copper wire braid shield up to 85% coverage
   (or no braid shield).
● PVC jacket, multi-pair computer and data transmission cable.
● Rated temperature:80；Rated voltage:30 volts.
● Passes UL VW-1 vertical flame test.
● Referece standard：UL Subject 758, UL1581.


■ APPLICATIONS：
● Computer cable for ElA RS-232 and CAD/CAM applications.
