■產品說明:
●導體使用裸軟銅或鍍錫軟銅絞線
●半硬PVC 絕緣
● 芯線集合后用棉紙帶隔離
●PVC 被覆,多芯電腦線與資料傳輸電纜
●額定溫度:60℃ or 80℃;額定電壓:30V
●通過UL VW-1 垂直耐燃測試
●參考標準:UL758,UL1581
■應用:
●滑鼠,電視游樂器,儀器,電腦線
■PRODUCT DESCRIPTION:
●Tinned or bare stranded copper conductor
●Color-coded SR-PVC insulation
●Cores cabled under tissue tape shield
●PVC jacket , multi-core computer and data transmission cable
●Rated temperature:60℃ or 80℃.Rated voltage:30V
●Passes UL VW-1 vertical flame test
●Reference standard:UL758,UL1581
■APPLICATIONS:
●Use for mouse,TV game,instrumentation and computer cables

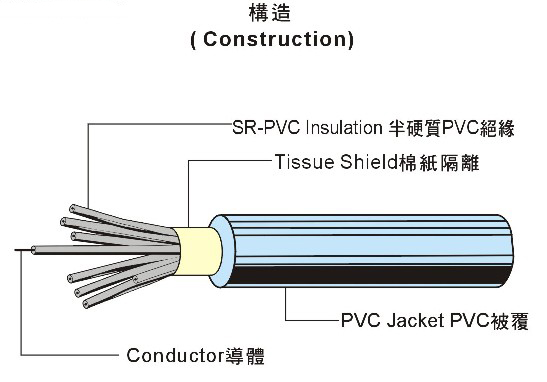

| ■ 產品結構CABLE CONSTRUCTION: | |||||
| Conductor 導體 | Insulation Thickness | No.of Core | Jacket Thickness | Overall Diameter | |
| 線號 | 線數/線徑 | 絕緣厚度 | 芯數 | 被覆厚度 | 完成外徑 |
| AWG | No./mm | mm | No. | mm | mm |
| 30 | 7/0.102 | 0.23 | 2 | 0.26 | 2.30 |
| 3 | 2.50 | ||||
| 4 | 2.70 | ||||
| 5 | 2.90 | ||||
| 6 | 3.00 | ||||
| 7 | 3.10 | ||||
| 8 | 3.40 | ||||
| 9 | 3.60 | ||||
| 10 | 3.70 | ||||
| 12 | 4.00 | ||||
| 28 | 7/0.127 | 0.23 | 2 | 0.26 | 2.40 |
| 3 | 2.60 | ||||
| 4 | 2.80 | ||||
| 5 | 3.00 | ||||
| 6 | 3.10 | ||||
| 7 | 3.30 | ||||
| 8 | 3.60 | ||||
| 9 | 3.80 | ||||
| 10 | 3.90 | ||||
| 12 | 4.20 | ||||
| 26 | 7/0.16 | 0.23 | 2 | 0.26 | 2.60 |
| 3 | 2.80 | ||||
| 4 | 3.00 | ||||
| 5 | 3.30 | ||||
| 6 | 3.40 | ||||
| 7 | 3.60 | ||||
| 8 | 3.90 | ||||
| 9 | 4.10 | ||||
| 10 | 4.30 | ||||
| 12 | 4.60 | ||||
| 24 | 7/0.203 | 0.23 | 2 | 0.26 | 2.90 |
| 3 | 3.10 | ||||
| 4 | 3.40 | ||||
| 5 | 3.70 | ||||
| 6 | 3.80 | ||||
| 7 | 4.00 | ||||
| 8 | 4.40 | ||||
| 9 | 4.60 | ||||
| 10 | 4.80 | ||||
| 12 | 5.20 | ||||
