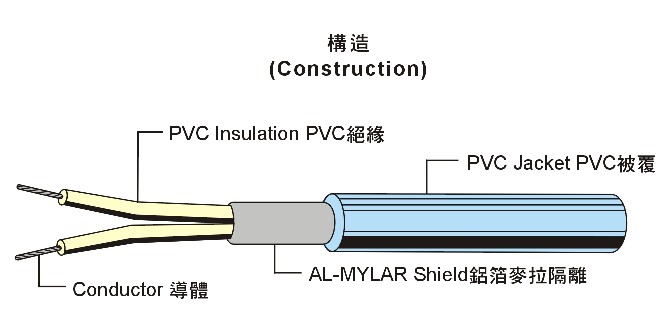

UL2095 Multi-Core Shielded Wire 多芯隔離線

■說明
●導體使用32AWG以上絞線，裸軟銅或鍍錫軟銅線
●PVC絕緣
●可加上裸軟銅或鍍錫軟銅線繼續隔離
●PVC被覆
●額定溫度：80℃；額定電壓：300volts
●可通過UL VW-1 垂直耐燃測試
●參考標準：UL 758， UL 1581

■應用：
●一般電子，電器設備內部配線

■PRODUCT DESCRIPTION：
●Tinned or bare,stranded or solid copper conductor,32AWG minimum.
●Color-coded PVC insulation.
●Tinned or bare copper wire spiral shield available.
●PVC jacket.
●Rated temperature：80℃. Rated voltage：300 volts.
●Passes UL VW - 1SC vertical flame test.
●Reference standard：UL subject 758，UL 1581.

■ APPLICATIONS：
●For general purpose internal wiring of electronicand electrical equipment.
