UL20251 Telephone Cord 電話線

■ 產品說明：
●導體使用單條或絞線，裸軟銅或鍍錫軟銅絞線，或銅箔絲
●芯線數為2至10芯
●PP絕緣
●芯線于被覆押出時從放
●PVC被覆
●額定溫度：60℃; 額定電壓：150volts
●可通過UL VW-1 垂直耐燃測試
● 參考標準：UL 758；UL 1581

■ 應用：
●適用于電子設備，電話直線及卷線

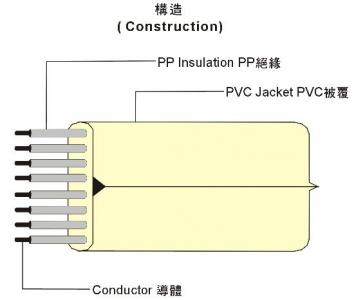

■ PRODUCT DESCRIPTION：
● Stranded or solid,tinned or bare copper conductor,or tinsel conductor.
● Two to ten conductors only.
● Color-coded polypropylene (PP) insulation.
● Cores are laid parallel of forming a flat.
● PVC jacket.
● Rated temperature：60℃. Rated voltage:150 volts.
● Passes UL VW-1 vertical flame test.
● Reference standard：UL subject 758，UL 1581.

■ APPLICATIONS：
● Internal cable of electronic equipment or as handset wire or telephone cord for subscriber sets.
