UL1061 Hook-Up Wire PVC 電子線

■說明：
●導體使用單條或絞線，30-16AWG裸軟銅或鍍錫軟銅線
●半硬PVC絕緣
●額定溫度：80℃；額定電壓：300volts
●可通過UL VW-1 垂直耐燃測試
●使用標準厚度，易剝，截?cái)嗳菀?br/>●參考標準：UL 758，UL 1581

■應用：
●一般電子，電子及電器設備

■PRODUCT DESCRIPTION：

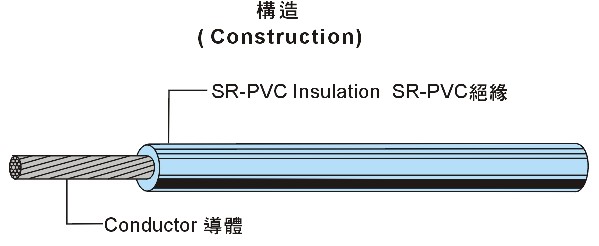

●Tinned or bare,stranded or solid copper conductor,30-16AWG.
●Color-coded SR-PVC insulation.
●Rated temperature:80℃. Rated voltage:300 volts.
●Passes UL VW-1 vertical flame test.
●Uniform thickness of wire to ensure easy stripping and cutting.
●Reference standard：UL subject 758，UL 1581.

■APPLICATIONS：
●Internal wiring of computers,office equipment and other
electronic and electrical equipment.
