UL2990 Low Voltage Computer Cable 低壓控制電纜

■ 說明:
● 導體使用單條或絞線；裸軟銅或鍍錫軟銅線
●PP絕緣
●芯線集合后鋁箔麥拉帶隔離
●裸軟銅或鍍錫軟銅線地線
●地線置于鋁箔麥拉帶與編織層之間
●(或鋁箔麥拉帶與芯線之間).
●裸軟銅或鍍錫軟銅編織隔離(或沒編織隔離)
●PVC被覆
●額定溫度：80℃； 額定電壓：30volts
●可通過UL VW-1 垂直耐燃測試
●參考標準：UL758，UL1581

■ 應用：
●適用于通訊，儀器，電腦

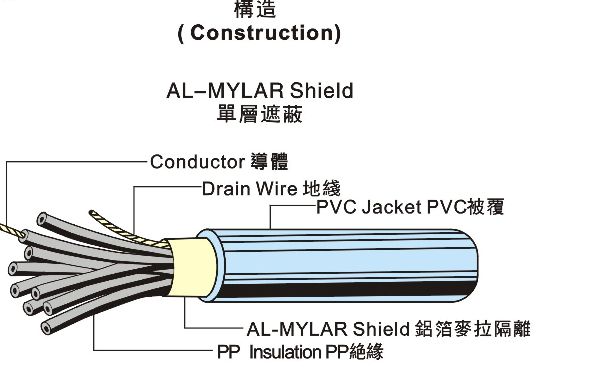

■ PRODUCT DESCRIPTION：
●Tinned or bare,solid or stranded copper conductor.
●Color-coded polypropylene(PP) insulation.
●Coress cabled under aluminum mylar shield.
●Tinned or bare copper drain wire.
●Drain wire laid between aluminum mylar and braid.
● (or laid between aluminum mylar and core groups).
●Tinned or bare copper wire braid shield.(or no braid shield).
●PVC jacket.
●Rated temperature：80℃. Rated voltage：30 volts.
●Passes UL VW-1 vertical flame test.
●Reference standard：UL subject 758, UL1581.

■ APPLICATIONS:
● Used for communication,instrumentation and computers cables.
