UL1533 單芯隔離線

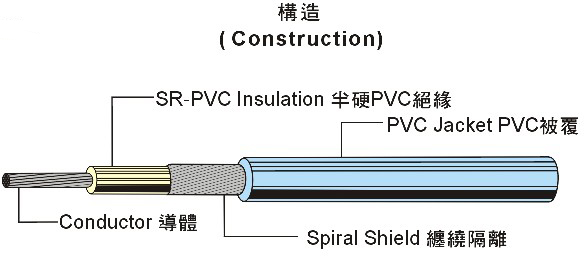

■ 產品說明：
●導體使用單條或絞線，30~16AWG
●裸軟銅或鍍錫軟銅線
●半硬PVC 絕緣，芯線類似UL 1061
●裸軟銅或鍍錫軟銅線纏繞隔離
●單芯PVC 被套
●額定溫度：80℃；額定電壓：無規定
●可通過UL VW-1SC垂直耐燃測試
●參考標準：UL subject 758，UL 1581

■ 產品應用：
●用于錄音，錄音工作室，音響系統，電子電路

■ PRODUCT DESCRIPTION：
●Tinned or bare,stranded or solid copper conductor,30-16 AWG.
●Color-coded SR-PVC insulation,similar to UL 1061.
●Tinned or bare copper wire spiral shield.
●Color-coded PVC jacket single core.
●Rated temperature：80℃. Rated voltage not specified.
●Passes UL VW-1SC vertical flame test.
●Reference standard：UL subject 758，UL 1581.

■ APPLICATIONS：
●For use in recording studios,sound systems and electronic circuits.
